--Venturi Tube--

Course Textbook Chapter Problem Needs by
General Physics College Physics (8th) by Serway, Faughn, Vuille 9 58 11/21/2009 at 12:30:00 PM
Question Details:

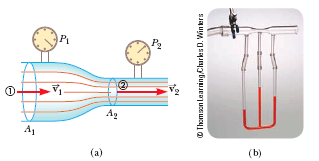

The Venturi tube shown in the figure below may be used as a fluid flowmeter. Suppose the device is used at a service station to measure the flow rate of gasoline (ρ = 700 kg/m3) through a hose having an outlet radius of 3.00 cm. If the difference in pressure is measured to be P1 - P2 = 1.20 kPa and the radius of the inlet tube to the meter is 1.50 cm.
(a) Find the speed of the gasoline as it leaves the hose.
1 m/s

(b) Find the fluid flow rate in cubic meters per second.
2 m3/s

AAnswers:

Answer Question Ask for clarification

No one has answered this question yet.

Be the first to answer. Earn up to 6 karma points.
